WATER TEMP GAUGE

3-330075

GAUGES

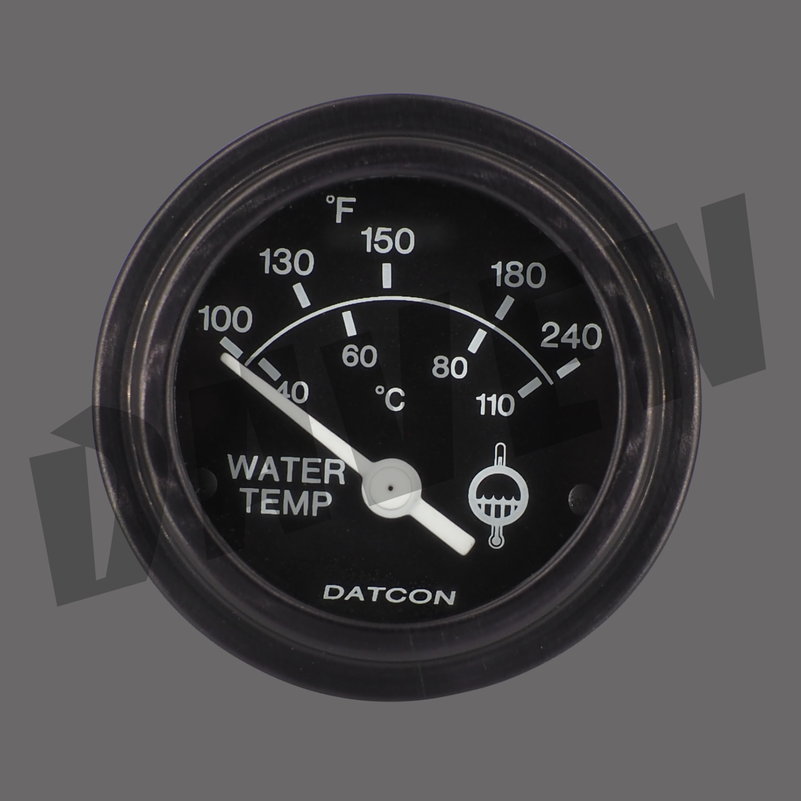

NAME: DATCON - WATER TEMPERATURE GAUGES (Electrical)

Basic Specification:
● Size: 2" (52mm) diameter (nominal
● Dials: Metal, black
● Bezel/Finish: Black
● Graphics/symbols: White-on-black English-metric (dual scale) with SAE symbols
● Pointer: Standard white; RTZ feature on select products
● Lens: Glass
● Case: High-impact moisture-resistant polyester (PBT)
● Bobin assembly: Fully sealed, internally dampened
● Movement: High-torque Magna-Torque air-core movement: 90° sweep for gauges
● Lighting: Perimeter lighting (Flood-lit)/Optional incandescent 12- or 240 volt 5/8" or wege-base light kits
● Supply/operating voltage: 12 VDC or 24 VDC/ 10-16 VDC (12-volt) ot 20-32 VDC (24-volt)
● Ohms/resistanceL Datcon electrical "match" (240-33.5 Ω, typical)
● Electrical connections: #6-32 studs, male
● Hardware: "Kit" includes mounting bracket, lock washers & zinc-plated nuts
● Sealing: Front sealed, gasketed
● General Performance: Gauges per SAE J 1810 ; meters per SAE J 1399 & J 1226
● Accuracy: Per SAE J 1810: +/- 1.5 angular degrees at primary calibration point & +/-3 angular degrees at secondary calibration point based on nominal input
● Operating temperature: -40°C to +85°C
● Shock & Vibration: Per SAE J 1810

Product:
Type Description: Water temperature gauges
Scale: 100-240°F ;
Match: DAL
Volt/Watt/Current: 12 V ; 24 V
Can use with TEMP SENSOR (LOW RANGE & HIGH RANGE)

--------------------

DAVEN CODE: 330074/75

--------------------------

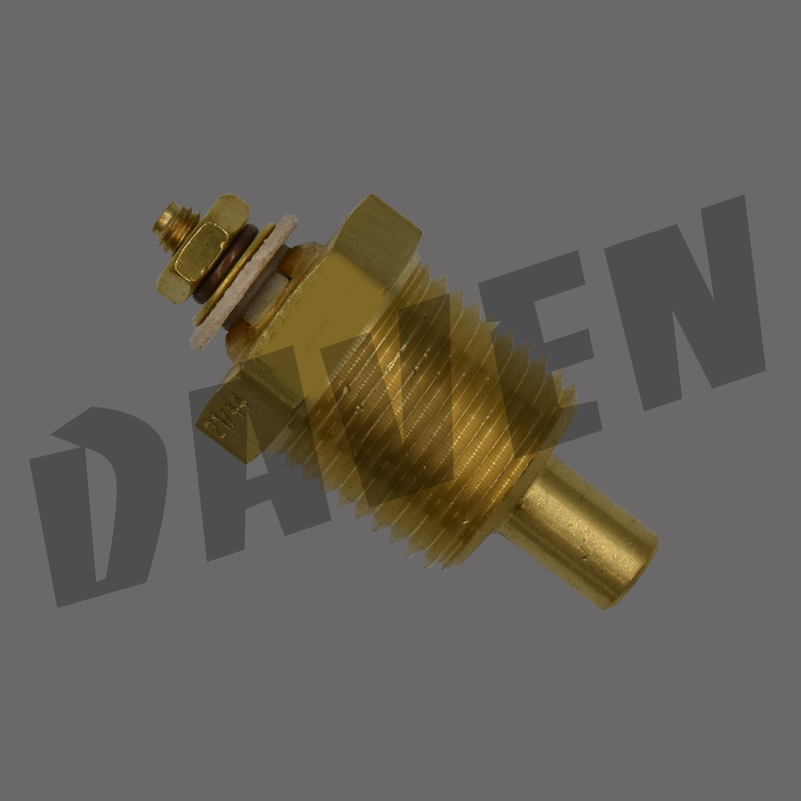

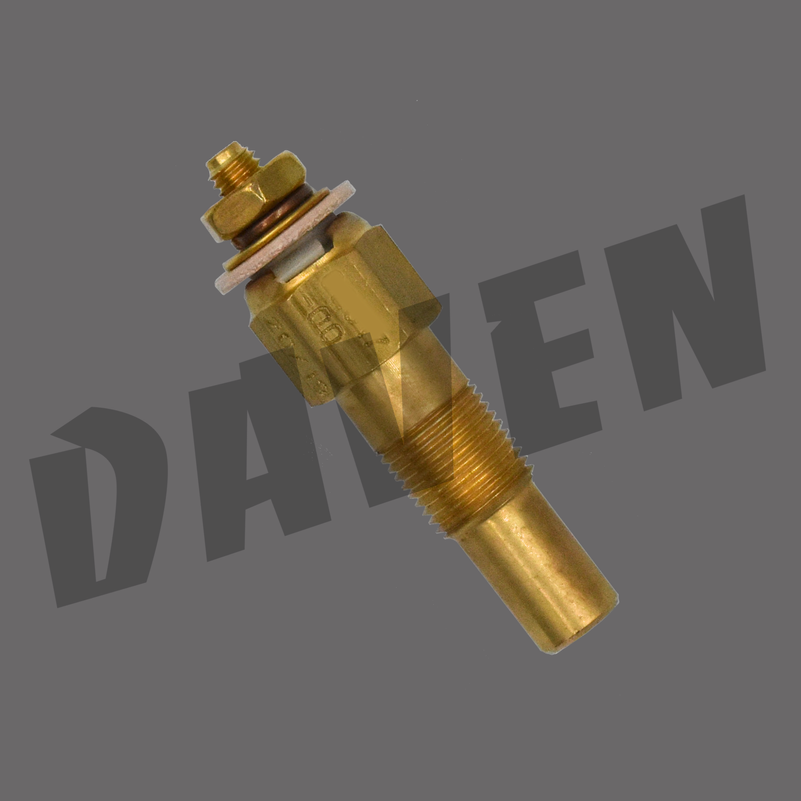

TEMP SENSOR: LOW RANGE
● Range: 100-240°F (0.5 K - 0.7 K)
● Match: DAL
● Thread: 1/8"-27 & 1/2"
● Ground: Common
● Terminal: 10-32 STUD

---------------------

DAVEN CODE: 330076 & 330127
