แผงควบคุมความเร็วรอบ รุ่น ESD5200 Series เป็นแผงวงจรอิเล็คทรอนิคส์ที่รวมฟังชั่นการทำงานของรุ่น ESD5100 Series ทั้งหมด เพิ่มเติมในส่วนของฟังชั่นจำกัดความเร็วรอบ (Speed Limit) เข้าไปด้วย

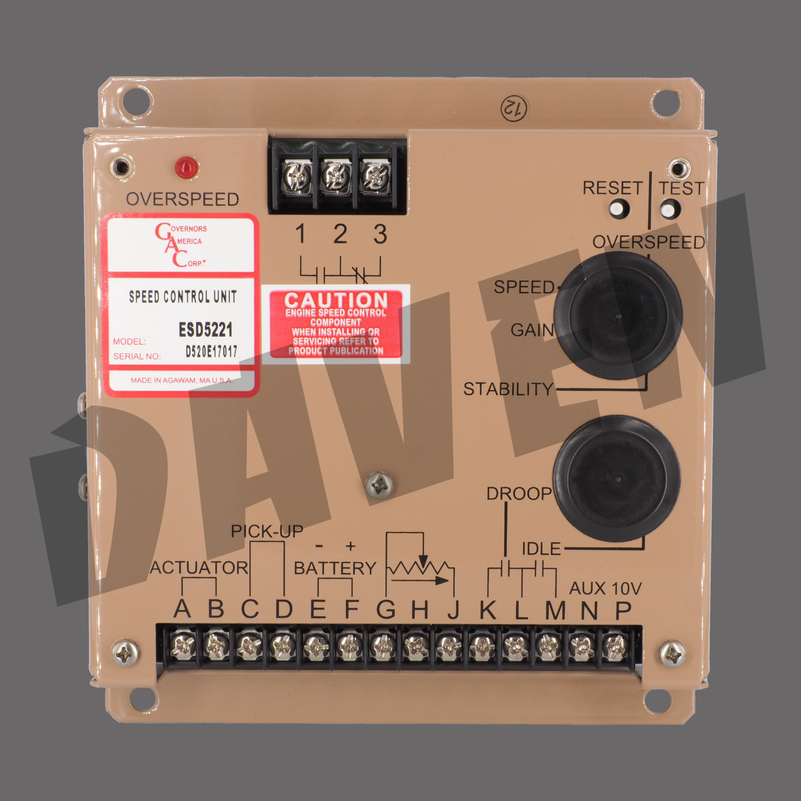

The ESD5221 Series speed control unit is designed to precisely control engine speed with rapid responses to transient load changes. The ESD speed control is compatible with all GAC proportional actuators except the ACB2001 electric actuator since this high torque actuator also requires current limiting. Ruggedly built to withstand all engine environments, the ESD will control a wide variety of engines in an isochronous or droop mode.

PERFORMANCE
Isochronous Operation: ±0.25%
Speed Range: 1 - 7.5 KHz Continuous
Speed Drift with Temperature: ±1.0%
Idle Speed Adjust CW: Min. 1200 Hz. Below Set Speed
Idle Speed Adjust CW: Min. 4100 Hz. Below Set Speed
Droop Range: 1 - 5% Regulation
Droop Adj. Max. (K-L Jumpered): 875 Hz., ±75 Hz per 1.0 A change
Droop Adj. Min. (K-L Jumpered): 15 Hz., ±6 Hz per 1.0 A change
Speed Trim Range: ±200 Hz
Remote Variable Speed Range: 500 - 7.5 Khz
Terminal Sensitivity:
 J: 100 Hz., ±15 Hz/Volt @ 5 KΩ Impedance
 L: 735 Hz., ±60 Hz/Volt @ 65 KΩ Impedance
 N: 148 Hz., ±10 Hz/Volt @ 1 MΩ Impedance
 P: 10 VDC Supply @ 20 mA Max
Speed Switch Adjustment Range: 1000 - 10000 Hz

ENVIRONMENTAL
Operating Temperature Range: -40 ° F to +185 ° F (-40 ° C to +85 ° C)
Relative Humidity: up to 95%
Vibration: 5 G @ 20 - 500Hz
All Surface Finishes: Fungus Proof and Corrosion Resistant

ELECTRICAL
Power Supply: 12 or 24 VDC Battery Systems (Transient and Reverse Voltage Protected)
Polarity: Negative Ground (Case Isolated)
Power Consumption: 50 mA (Continuous Plus Actuator Current)
Actuator Current Range @ 77°F (25°C): 10 Amps Continuous
Speed Sensor Signal: 1.0 - 120 VRMS
Speed Switch Relay Contacts (N.O. and N.C.): Max 10 Amps

PHYSICAL
Weight: 1.8 lb (0.82 kg)
Mounting: Any Position, Vertically Preferred

-----------------------------

DAVEN CODE: 220034
