COCKPIT : OIL PRESSURE GAUGE 5-10 BAR (เกจวัดแรงดันน้ำมันเครื่อง 5-10 บาร์ รุ่น ค๊อกพิท)

NAME: VDO - PRESSURE GAUGE (COCKPIT)

Description:
Analog indication of corresponded measured values when
connected to a separate sensor (exception voltmeter).

Standard Specification:
● Operating voltage: 11V to 16V ; 21.5V to 30V
● Current consumption (without illumination):
- 82mA pressure gauge
- 131mA temperature gauge
- 106mA temp. g. 60 ... 200°C
- 67mA voltmeter 16V
- 63mA voltmeter 32V
- 86mA fuel level gauge (lever-type)
- 96mA fuel level gauge (tubular type)
● Operating temperature: – 30°C to + 85°C
● Storage temperature: – 40°C to + 90°C
● Protection: IP64 DIN 40050 from the front reverse-polarity protection
● Nominal position: NL 0 to NL 90, DIN 16257
● Vibration resistance:1g eff. max., 25Hz to 2000Hz duration 8 h, f: 1 octave/min.
● Light bulb: 14V 3.4W or 24V 3W
● Bezel: black, triangular version
● Lens: nonreflective
● Deflector: black
● Dialgraphics: black background with white characters
● Pointer: arm red; hub black
● Housing: steel, zinc-plated and chromatized
● Mounting: bracket, steel, zinc-plated and chromatized
● Connections: blade terminals 6.3 x 0.8mm

Product:
1.VDO Pressure gauge (Cockpit)  ;
● Colour: Black
● Panel hole diameter: 52 mm - 2 1/16"
● Range: 0 to 5 Bar ; 0 to 10 Bar
● Operating voltage: 12 Volt DC ; 24 Volt DC
------------------------

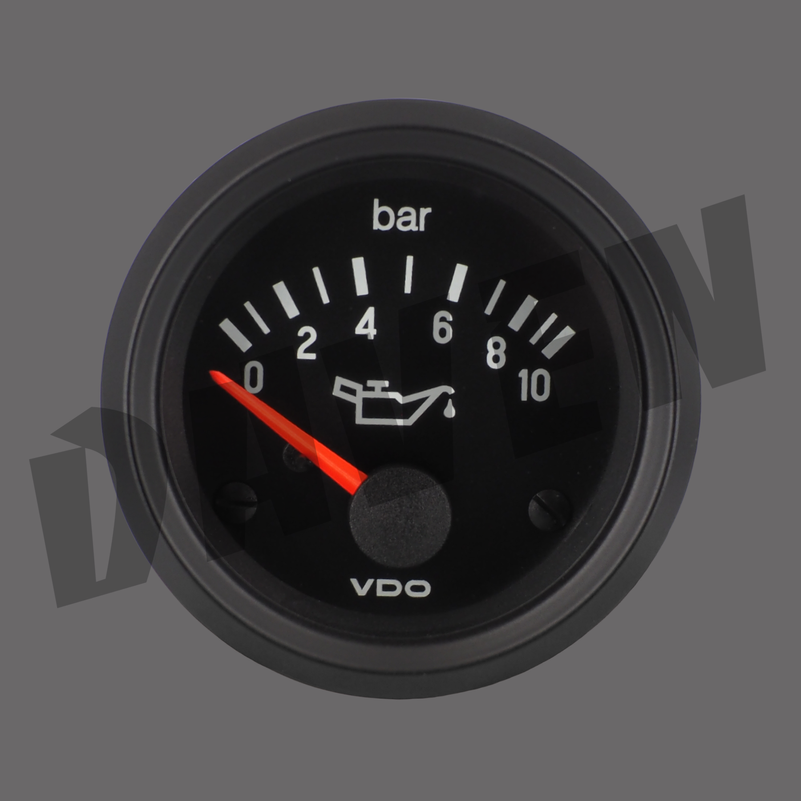

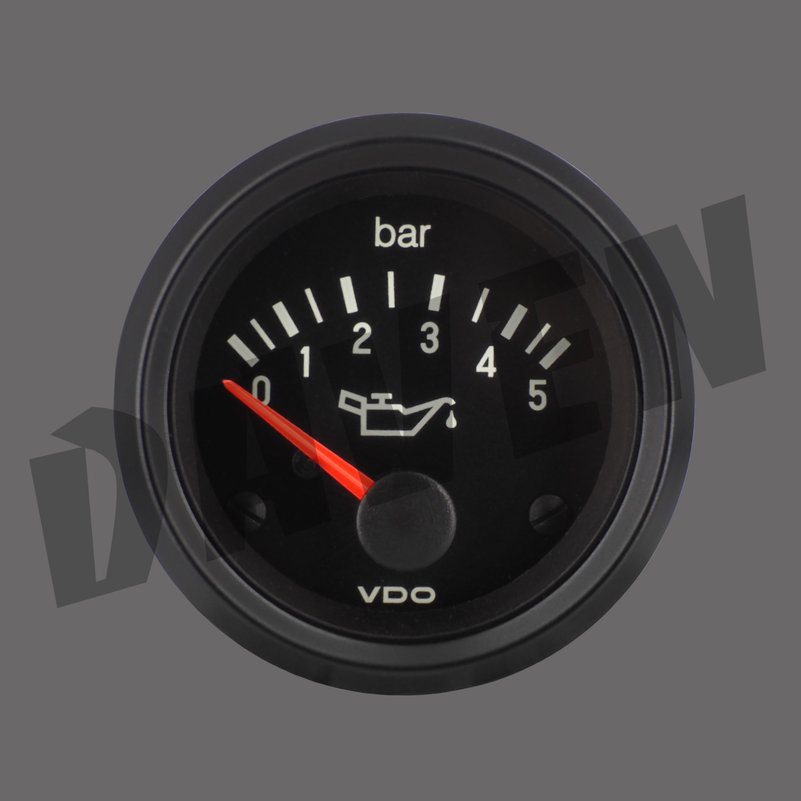

DAVEN CODE: 5 BAR = 120062 / 10 BAR = 120035
