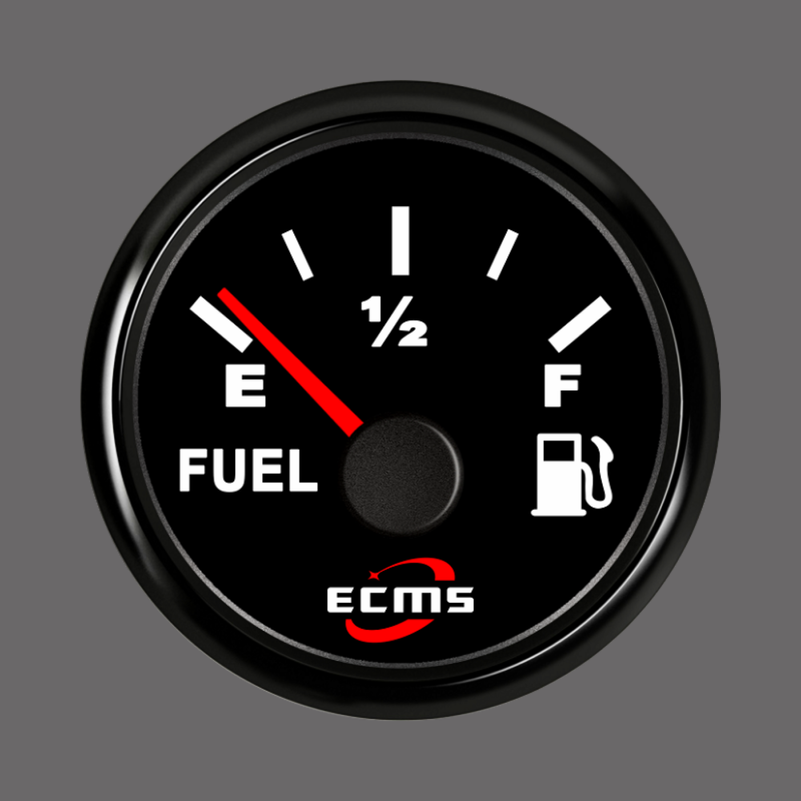

ECMS : FUEL GAUGE (เกจวัดน้ำมันเชื้อเพลิง)
NAME: ECP SERIES - FUEL LEVEL GAUGE
ECP Series:
● 316L stianless steel for long-term use even in acid-base, humid environment
● IP67 waterproof and dustproof grade
● Stepper motors used for full range of steupping gauges, great feature with its less power consumption, longer life, higher precision, etc.
● With curved glass (with anti-fog function)
● With ultra-wide working voltage design (long-term operating voltage: 9-32V, Maximum up to: 36V ( ≤ 1minute))
● Backlight for standard is red, but various back light could be customized according to customer's requirement.
● Ultra-low power design--- The working current of most of the instruments is about 40mA
● *Customized color for stainless is provied*
● Fast delivery time, better for releasing your pressure of stockage and liquidity
●There is a snap together with the harness connector, for best and firmly connected, in order that the gauges could work even in strong viberation. Products can be used for the engines/ generating units, ship, construction machinery, agricultural machinery, automotive modification, etc.
Qualification
Type Description: Fuel level gauge
● Diameter, in: 52 mm
● Working Volt/Watt/Current: 9-32 V
● Signal: 0-190 Ω ; 240-33 Ω
● Range: E-F
● Bezel/Finish: 316L (Black)
----------------------------
DAVEN CODE: 460164 & 460207

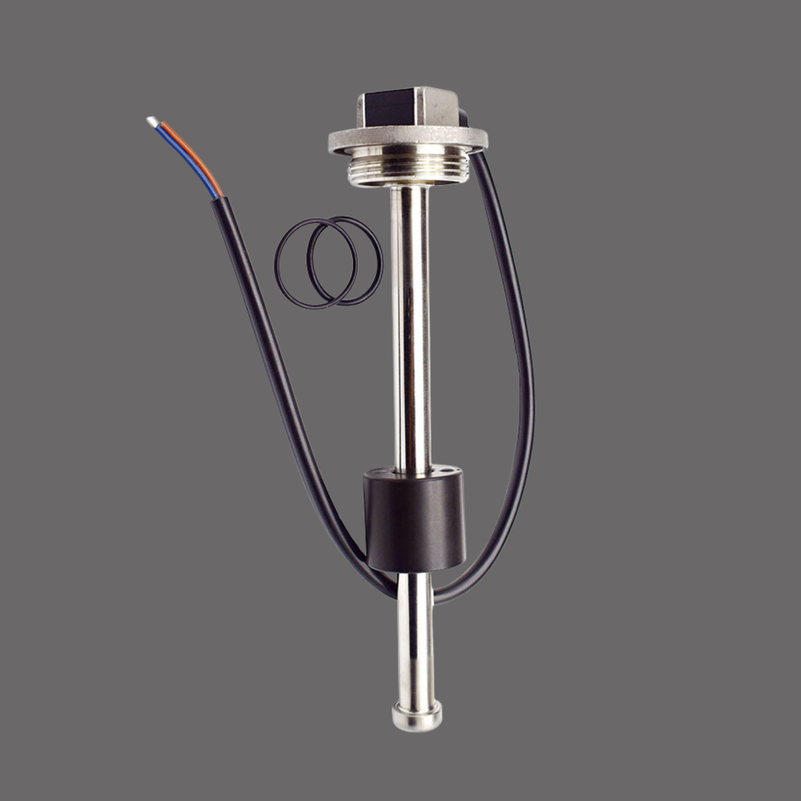

C3 - FUEL & WATER SENSOR
SENSORS
NAME: Fuel & Water Sender - C3 (screw fit)
Description:
Pressure Sensor has merits of simple, easy use, high cost effective, stable performance, reliable etc, standard resistance signal output.Working temperature range is relatively wide.
Material SUS343 or SUS316 can be customized per request. Sensor signal output can be customized.
Product:
1.C3-E650 Level Sensor (DAVEN CODE:460158)
2.Flange for C3 Level Sensor (DAVEN CODE:460159)
z-z95584550986.png)
C5 - FUEL & WATER SENSOR
SENSORS
NAME: Fuel & Water Sender - C5 (5 bolt)
Description:
Pressure Sensor has merits of simple, easy use, high cost effective, stable performance, reliable etc, standard resistance signal output.Working temperature range is relatively wide.
Material SUS343 or SUS316 can be customized per request. Sensor signal output can be customized.
Product:
1.C5-A800 Level Sensor 240-33 Ω (DAVEN CODE:460168)
2.C5-A800 Level Sensor 80-8 Ω (DAVEN CODE:460199)
3.C5-E400 Level Sensor 0-190 Ω (DAVEN CODE:460200)
4.C5-A150 Level Sensor, 150 mm. 240-33 Ω (DAVEN CODE:460228)
5.C5-E1200 Sensor,120cm,0-180 Ω With LLS (DAVEN CODE:460229)
6.C5-E300 SAE 5Holes Fuel Level Sensor 0-180 Ω (DAVEN CODE:460249)
7.C5-170E Fuel Sensor 0-180 Ω (DAVEN CODE:460251)
8.C5-E540 Fuel Level Sensor 0-190 Ω (DAVEN CODE: 460174 & 460252)
