GUAGES
NAME: VDO - PRESSURE GAUGE (VIEWLINE)

Standard Specification:
● Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch
● Installation depth: 50 mm
● Locking height with Spinlock nut: 0.5 mm - 20 mm
● Locking height with bracket: 2 mm - 15 mm (Optional)
● Flushmount: Optional kit A2C59510864
● Engine oil pressure upper scale range: 0 to 5 Bar
● Engine oil pressure under scale range: 0 to 80 PSI
● Sensor signal input engine oil pressure: VDO Pressure sender 10 to 184 Ohm
● Accuracy: < 3.6 angular degrees
● Connection: Hirschmann 8 pins MQS connector
● Operating voltage: 8 to 32 Volt DC
● Current consumption: < 140 mA including warning LED
● Reverse polarity protection: Yes - 5 Minutes
● Short circuit protection: Yes - 1 Minute
● Deflection angle: 90°
● Dial colour: Black
● Dial Illumination: Amber LED backlight 605nm
● Pointer: White LED backlight
● Warning LED: Red (632nm)
● Programming: VDO USB software kit
● Model: VDO ViewLine Marine
● Lens: Dual - Anti-glare - Anti-Fog
● Standard bezel: Round black (Interchangeable)
● Front protection class: IP67 (IEC 60529)
● Rear protection class: IP52
● Relative humidity: Maximum 95%
● Operating temperature: -30°C to +80°C (Plastic bezel)
● CE standard: Yes
● DNV GL Certification: Yes
● Mechanical shock continuous: 25G - 6ms - 1Hz
● Mechanical single shock 100G - 11ms
● Free fall test: 1 Meter - 3x
● Housing flame retarding: UL94-VD

Product:

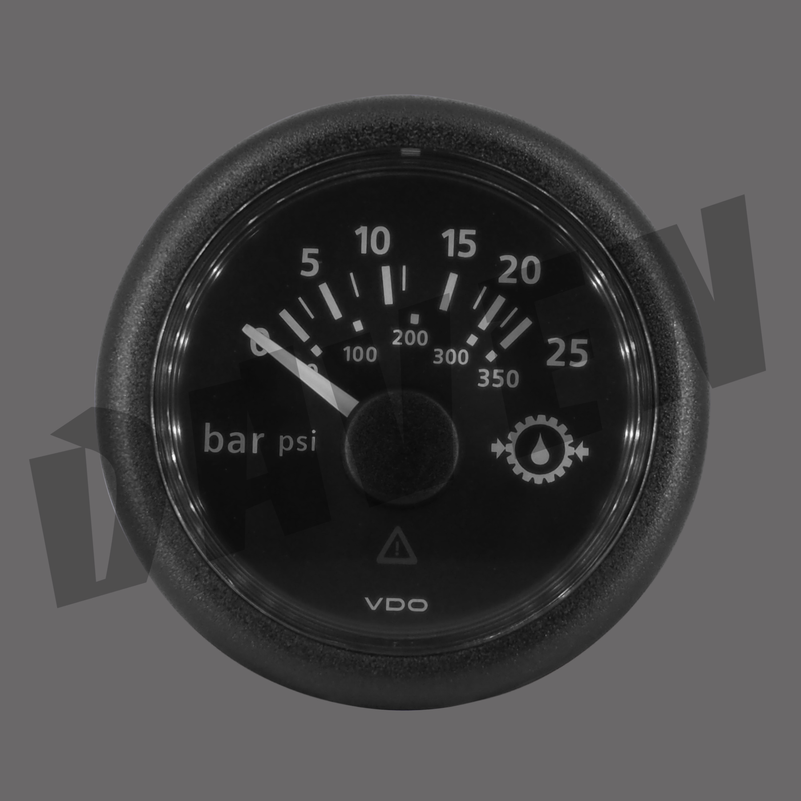

1.VDO Engine Oil Pressure (Viewline)
● Colour: Black
● Panel hole diameter: 52 mm - 2 1/16"
● Range: 0 to 25 Bar
● Lens: Dual - Anti-Fog

-----------------

DAVEN CODE: 120060
