GAUGES

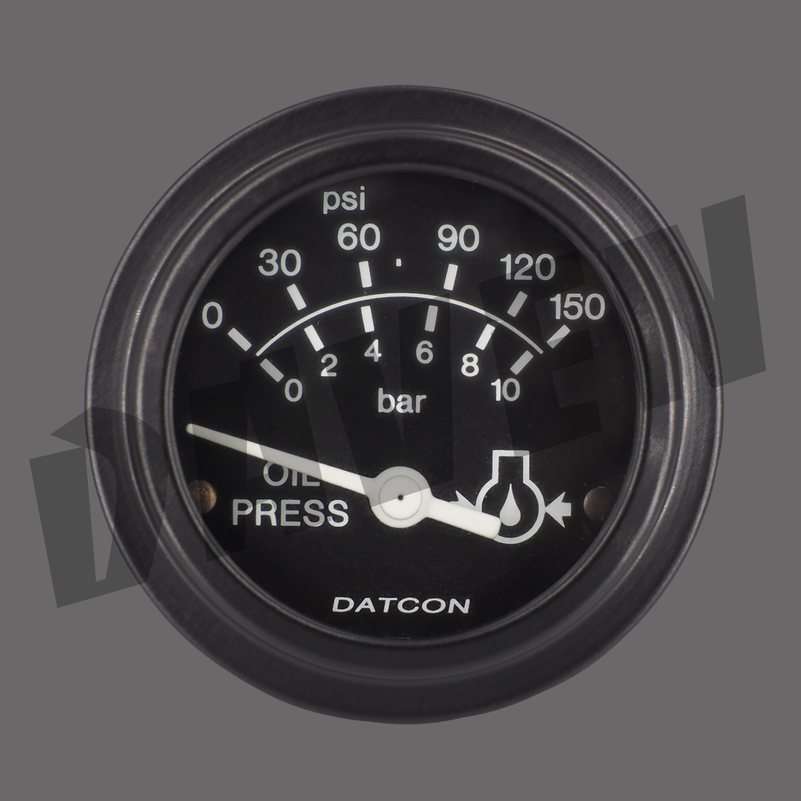

NAME: DATCON - OIL PRESSURE GAUGES

Basic Specification:
● Size: 2" (52mm) diameter (nominal)
● Dials: Metal, black
● Bezel/Finish: Black
● Graphics/symbols: White-on-black English-metric (dual scale) with SAE symbols
● Pointer: Standard white; RTZ feature on select products
●Lens: Glass
● Case: High-impact moisture-resistant polyester (PBT)
● Bobin assembly: Fully sealed, internally dampened
● Movement: High-torque Magna-Torque air-core movement: 90° sweep for gauges
● Lighting: Perimeter lighting (Flood-lit)/Optional incandescent 12- or 240 volt 5/8"
● Supply/operating voltage: 12 VDC or 24 VDC/ 10-16 VDC (12-volt) ot 20-32 VDC (24-volt)
● Ohms/resistanceL Datcon electrical "match" (240-33.5 Ω, typical)
● Electrical connections: #6-32 studs, male
● Hardware: "Kit" includes mounting bracket, lock washers & zinc-plated nuts
● Sealing: Front sealed, gasketed
● General Performance: Gauges per SAE J 1810 ; meters per SAE J 1399 & J 1226
● Accuracy: Per SAE J 1810: +/- 1.5 angular degrees at primary calibration point & +/-3 angular degrees at secondary calibration point based on nominal input
● Operating temperature: -40°C to +85°C
● Shock & Vibration: Per SAE J 1810

Product:
Type Description: Oil Pressure gauges
Scale:  0-150 psi
Ohms: 240-33.5 Ω
Volt/Watt/Current: 12 V
Can use with PRESSURE SENSOR (HEAVY DUTY)

----------------------

DAVEN CODE: 330123

------------------------------

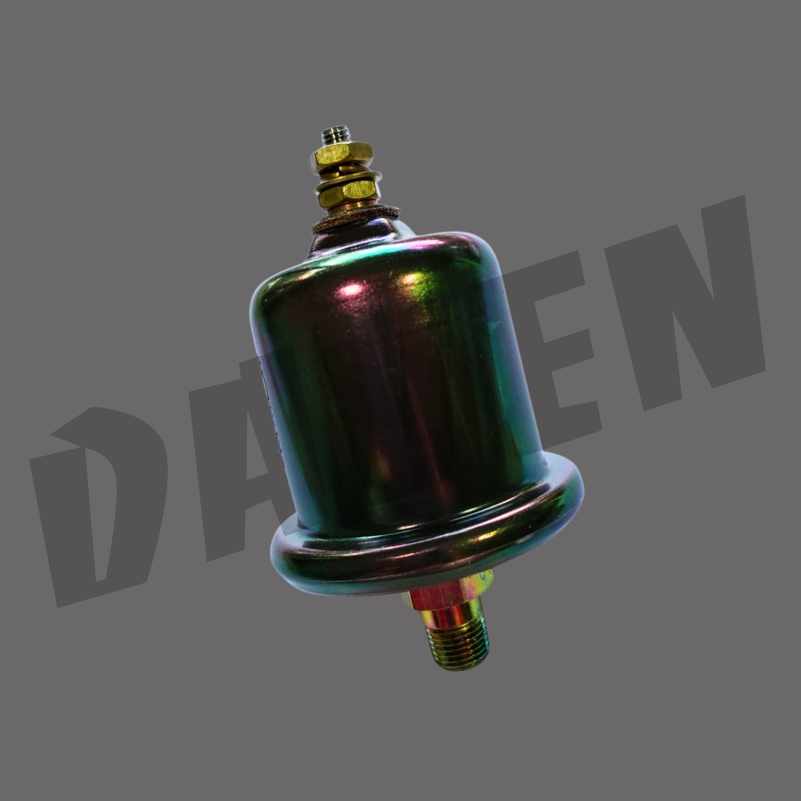

SENDERS (SENSORS)
NAME: DATCON - PRESSURE SENSOR (HEAVY DUTY)

PRESSURE SENSOR: HEAVY DUTY
● Range:  0-150 psi/0-10 bar
● Ohms: 240-33.5 Ω
● Thread: 1/8"-27
● Ground: Common
● Terminal: 10-32 STUD

----------------------

DAVEN CODE: 330181
