SAFETY CONTROLS (อุปกรณ์ควบคุมความปลอดภัย)>> HONEYWELL

4-8801004-880101

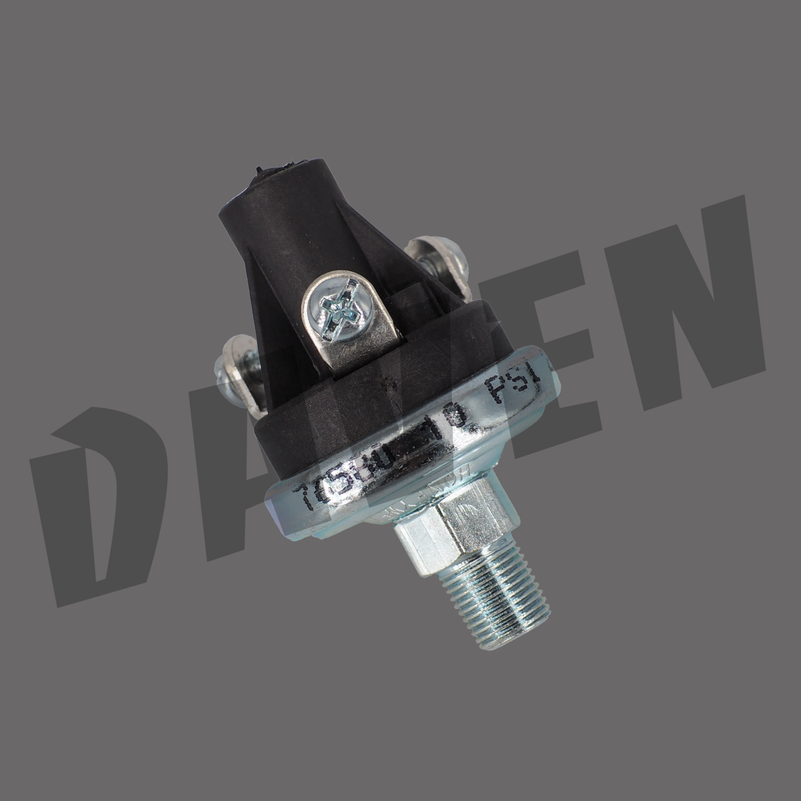

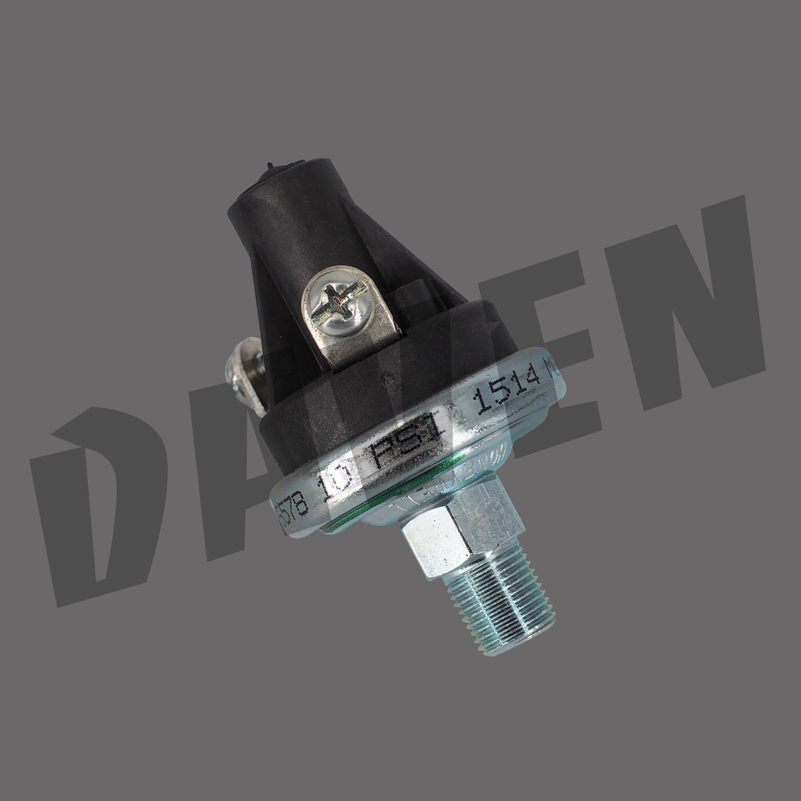

HONEYWELL : PRESSURE SWITCH (สวิตซ์ควบคุมแรงดัน 2 ขั้ว / 3 ขั้ว)

Honeywell's 5000 Series pressure switch is specifically designed to stand up to extended duty applications. This switch is factory set but capable of field adjustment. It features a Kapton diaphragm for compatibility with a wide variety of fluids, and various terminations including a Metri-Pack connector that forms a tight seal when connected.

Among the outstanding design benefits are its durable construction, compact size, and enhanced set point integrity.

Standard Specification:
Type Description: Low pressure switch
Type: Direct action, Dlade contact
Contacts: Silver alloy, Gold plated
Set Point: Factory set from 0.5 to 150 PSI
Operating Pressure:
150 PSI for 0.5-24 PSI set point range
250 PSI for 25-150 PSI set point range
Proof Pressure: 500 PSI
Burst Pressure:
750 PSI for 0.5-24 PSI set point range
1250 PSI for 25-150 PSI set point range

Ratings:
Resistive:
15 AMP- 6 VDC
8 AMP- 12 VDC
4 AMP- 24 VDC
Inductive:
1 AMP- 120 VAC
0.5 AMP- 240 VAC
Diaphragm: Polyimide film
Temperature
Range: -40° F to + 250° F
Connector: 1/8 -27 NPT male thread
Terminals: #8-32 screws,
Circuitry:
SPST-N.O., N.C.,1 circuit adjustable dual circuit, or 2 circuits adjustable dual
circuit. Also available are N.O./N.O. dual circuit and N.C./N.C. dual circuit.
Base: Plated Steel

Product: Single Circuits 2 terminals ; Dual circuits (One circuits adjustable)
Contact setting: 8-13 PSI ±2
Factory set: at 10 psi
Circuitry: N.C ; N.O&N.C
