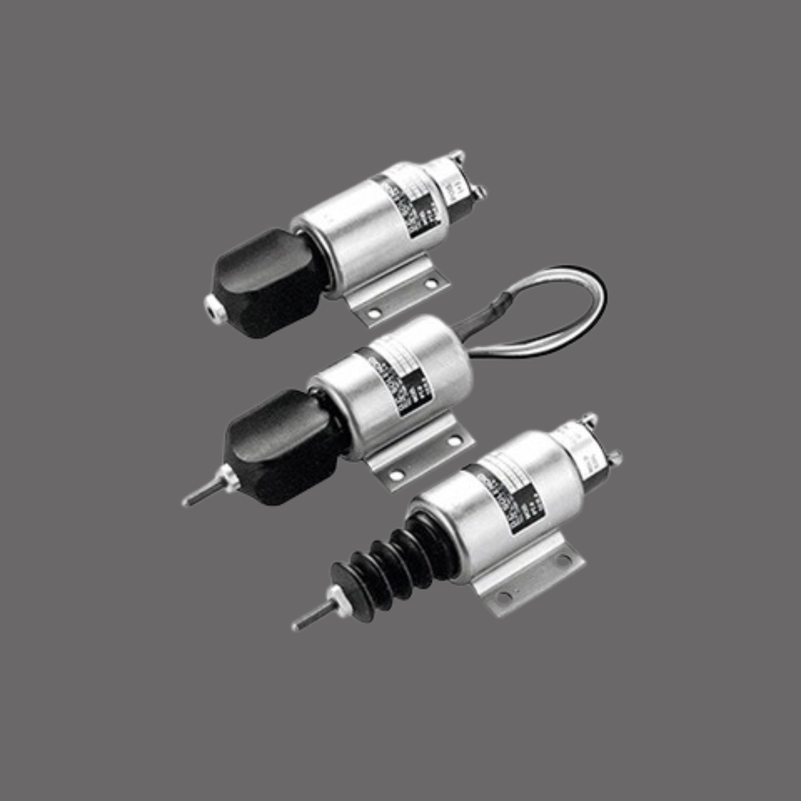

SOLENOID : 2000 SERIES (โซลินอยด์ ยี่ห้อ Woodward ซีรี่ย์ 2000)
High-performance dual-coil solenoids
Woodward dual-coil solenoids have proven to be robust and reliable for over 80 years. World-class engine manufacturers globally rely upon Woodard for electro-mechanical control solutions that survive the harshest standards and most extreme specifications in the industry.
Feature & Functionalty:
Woodward dual-coil solenoids have proven to be robust and reliable for over 80 years. World-class engine manufacturers globally rely upon Woodard for electro-mechanical control solutions that survive the harshest standards and most extreme specifications in the industry.
Our full line includes standard and custom dual-coil solenoids for continuous, intermittent, and pull-hold cycle actuation. Whatever your stroke, force, voltage, mounting, sealing, or contamination protection requirements, Woodward has a solenoid to meet your needs. Or, we can custom design one for your exact specifications.
• Dual coil desing for higher pull force in a smaller package than similar size single coil solenoid
• Internal or external switching for pull coil
• Hold coil designed for continuous duty operation under the most severe temperature and vibration conditions
• Corrosion resistant plated steel hosing and mounting base/flange
• Plunger hard chrome plated for smooth, reliable, wear resisitant operation
• Brass liner plunger bore for long life
• Variety of options for mounting bases/flangers, plungers, terminations, boots, springs
• 100% insected and factory tested
• Coils are potted to seal the entire solenoid for long, reliable service under extreme vibration, temperature, dirt, and moisture conditions (only for 2001ES/2003ES solenoid with leads)
Specification:
• Rated Voltage: 12 VDC; 24 VDC
• Pull Current:
2001ES: 44 A; 23 A
2003/2003ES: 60 A; 37 A
• Hold Current:
2001ES: .6 A; 3 A
2003/2003ES: .8 A; .4 A
• Pull rating:
2001ES: 17 lbs. (75 Newtons) at 1 in. (25.4 mm) at rated voltage and 68°F (20°C)
2003/2003ES: 21 lbs. (93 Newtons) at 1 in. (25.4 mm) at rated voltage and 68°F (20°C)
• Hold Rating: 40 lbs. (178 Newtons) at rated voltage and 68°F (20°C)
• Ambient Temperature: -40˚F to +250˚F (-40˚C to +121˚C)
• Shipping Weight: Approximately 2.5 lbs. (1.2kg)
Product:
1.Woodward - Model: 2001ES-12E6U1B2S1
• Part N.: 2000-4008
• Volt: 12 VDC
2.Woodward - Model: 2001ES-24E2U1B2S1
• Part N.: 2000-4005
• Volt: 24 VDC
3.Woodward - Model: 2003-24E6U1B1S1A
• Volt: 124 VDC
4.Woodward - Model: 2003ES-12E6U1B1S1
• Part N.: 2000-4007
• Volt: 12 VDC
5.Woodward - Model: 2003ES-24E7ULB1S4CC12
• Part N.: SA4725-24
• Volt: 24 VDC
