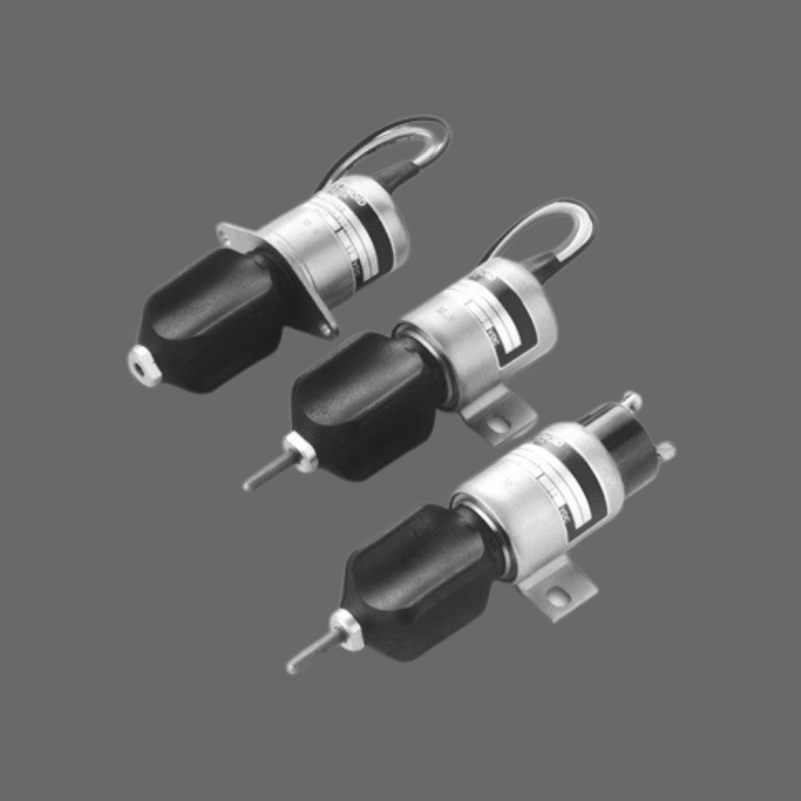

SOLENOID : 1750 SERIES (โซลินอยด์ ยี่ห้อ Woodward ซีรี่ย์ 1750)
Push Series dual-coil solenoids
Woodward dual-coil solenoids have proven to be robust and reliable for over 80 years. World-class engine manufacturers globally rely upon Woodard for electro-mechanical control solutions that survive the harshest standards and most extreme specifications in the industry.
Feature & Functionality:
Woodward dual-coil solenoids have proven to be robust and reliable for over 80 years. World-class engine manufacturers globally rely upon Woodard for electro-mechanical control solutions that survive the harshest standards and most extreme specifications in the industry.
Our full line includes standard and custom dual-coil solenoids for continuous, intermittent, and pull-hold cycle actuation. Whatever your stroke, force, voltage, mounting, sealing, or contamination protection requirements, Woodward has a solenoid to meet your needs. Or, we can custom design one for your exact specifications.
dual-coil solenoids
• Single and dual coil construction
• Hard chrome plated plunger and brass liner for smooth, reliable, wear-resistant operation, tested on one million cycles
• Corrosion resistant plated steel housing and mounting base/flange
• Choice of flange, threaded, or base mountings
• Electrical connections available with choice of screw or spade terminals, or wire/connectors
• Bellows or constant volume boot types available
Solenoid Control Electronics
• Prevent overheating of the solenoid pull coil
• Coil Commander and Pull Coil Timer Modules (PCTMs) with external attachment to the solenoid
• ICE (Integrated Coil Electronics) and AICE (Advanced ICE) dual-coil solenoids with built-in electronics
Solenoid Shutdown Kits
• Fit a range of engines and fuel injection pump governors
• Simple installation and maintenance
• Solenoid and all mounting hardware for attachment included
Specifications:
Temperature Range: -40˚F to +250˚F (-40˚C to +121˚C)
Weight: 1.5 lbs (0.7 ks)
Rated Voltage: 12/24 VDC
Rated Stroke: 1" (25.4 mm)
Pull Currect: 18 A - 46 A
Hold Current: 0.4 A - 1.1 A
Pull Force Range: 19-25 lbs (85-111 N)
Hold Force Range: 38-43 lbs (169-191 N)
Coil Winding: Parallel
Product:
1.Woodward - Model: 1753ES
• Part N.: SA-3787
• Volt: 12 VDC
