DATCON : AMMETERS (แอมมิเตอร์)
NAME: DATCON - AMMETERS
Basic Specification:
● Size: 2" (52mm) diameter (nominal)● Dials: Metal, black
● Bezel/Finish: Black
● Graphics/symbols: White-on-black English-metric (dual scale) with SAE symbols
● Pointer: Standard white; RTZ feature on select products
● Lens: Glass
● Case: High-impact moisture-resistant polyester (PBT)
● Bobin assembly: Fully sealed, internally dampened
● Movement: High-torque Magna-Torque air-core movement: 90° sweep for gauges
● Lighting: Perimeter lighting (Flood-lit)/Optional incandescent 12- or 240 volt 5/8" or wege-base light kits
● Supply/operating voltage: 12 VDC or 24 VDC/ 10-16 VDC (12-volt) ot 20-32 VDC (24-volt)
● Ohms/resistanceL Datcon electrical "match" (240-33.5 Ω, typical)
● Electrical connections: #6-32 studs, male
● Hardware: "Kit" includes mounting bracket, lock washers & zinc-plated nuts
● Sealing: Front sealed, gasketed
● General Performance: Gauges per SAE J 1810 ; meters per SAE J 1399 & J 1226
● Accuracy: Per SAE J 1810: +/- 1.5 angular degrees at primary calibration point & +/-3 angular degrees at secondary calibration point based on nominal input
● Operating temperature: -40°C to +85°C
● Shock & Vibration: Per SAE J 1810
Product:
Type Description: Ammeters

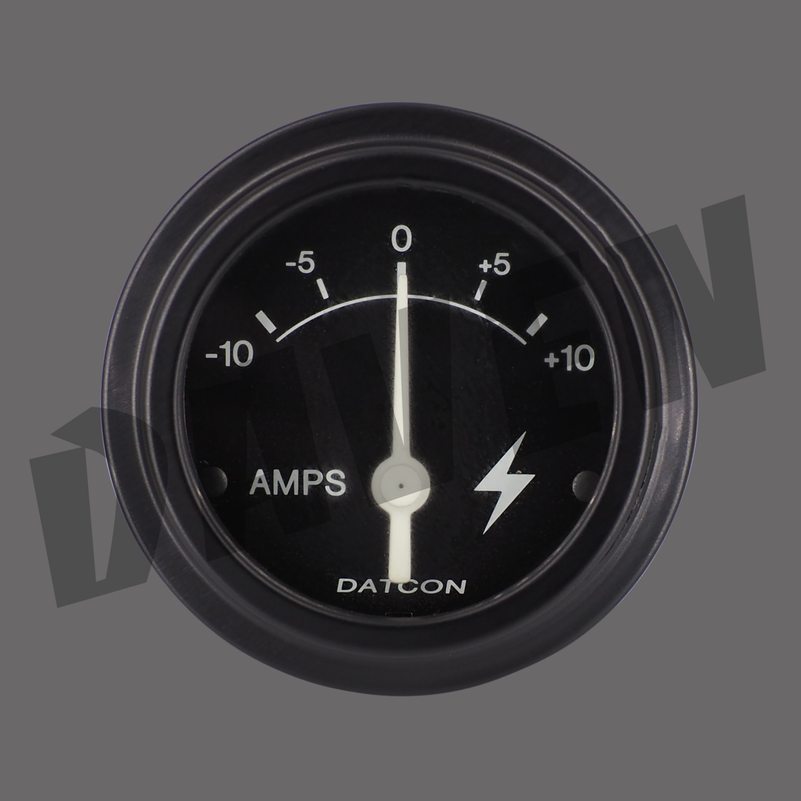

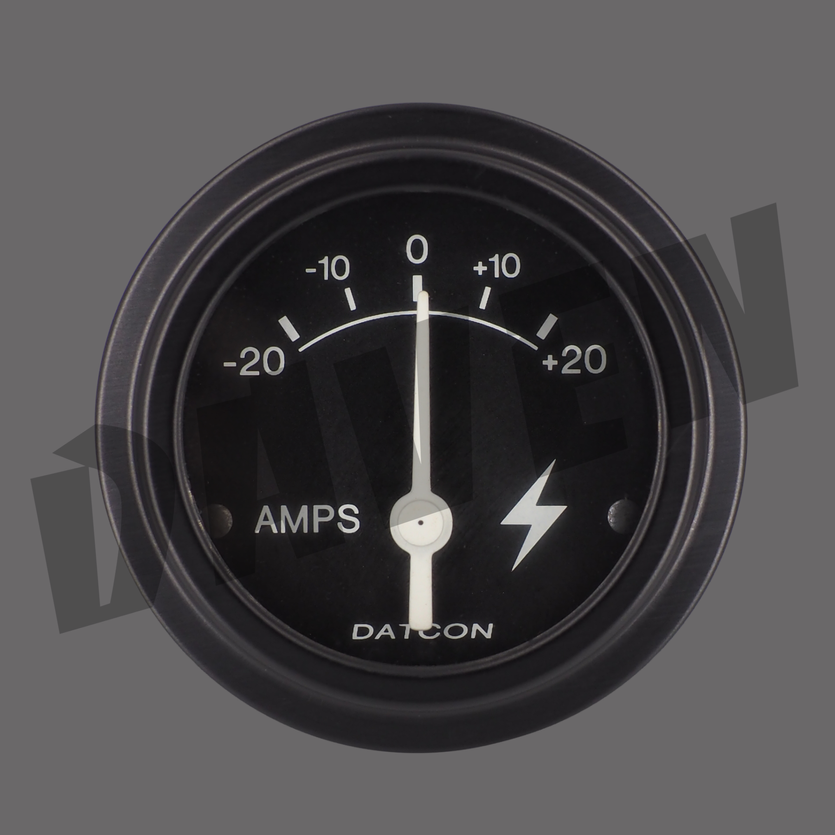

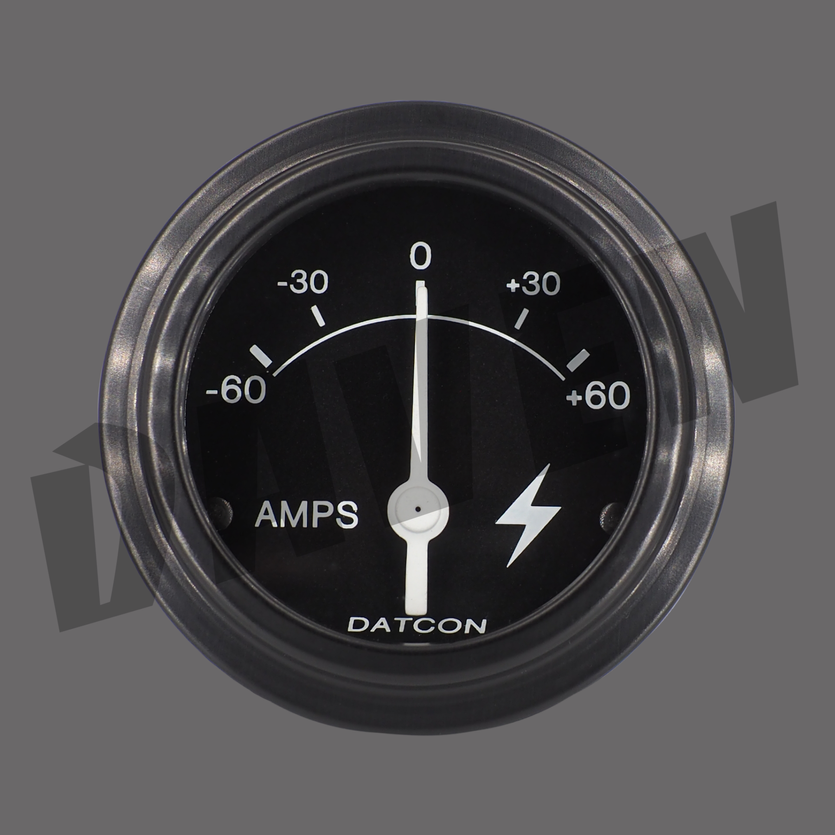

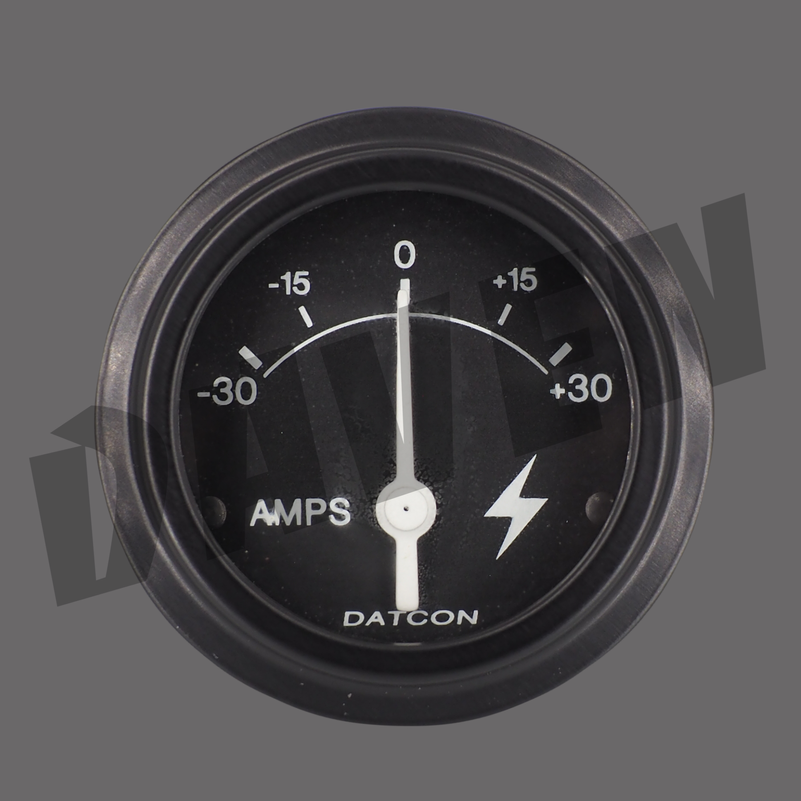

Scale: 10-0-10 A ; 20-0-20 A ;30-0-30 A ; 60-0-60 A ; 100-0-100 A
*Shunt are external to ammeters
Shunt (P/N): 07598-00 use with Ammeters 100-0-100 A
