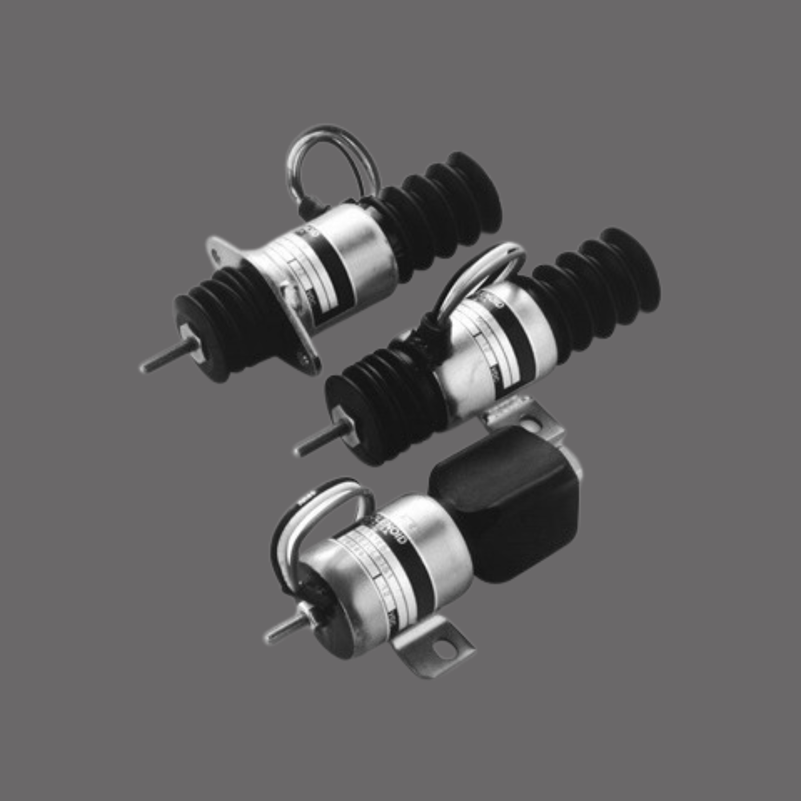

SOLENOID : 1750 SERIES (PUSH MODELS) (โซลินอยด์ ยี่ห้อ Wooward ซีรี่ย์ 1750)
High-performance dual-coil solenoids
Woodward dual-coil solenoids have proven to be robust and reliable for over 80 years. World-class engine manufacturers globally rely upon Woodard for electro-mechanical control solutions that survive the harshest standards and most extreme specifications in the industry.
Feature & Functionalty:
Woodward dual-coil solenoids have proven to be robust and reliable for over 80 years. World-class engine manufacturers globally rely upon Woodard for electro-mechanical control solutions that survive the harshest standards and most extreme specifications in the industry.
Our full line includes standard and custom dual-coil solenoids for continuous, intermittent, and pull-hold cycle actuation. Whatever your stroke, force, voltage, mounting, sealing, or contamination protection requirements, Woodward has a solenoid to meet your needs. Or, we can custom design one for your exact specifications.
• Dual coil design for higher push force in a smaller package than similar size single coil solenoids
• External switching for pull coil
• Hold coil designed for continuous duty operation under ther most severe temperature and vibration conditions
• Corrosion resistant plated steel housing and mounting base/flange
• Plunger hard chrome plated for smooth, reliable, wear resistant operation
• Brass liner plunger bore for long life
• Variety of options for mounting bases/flangers, plungers, terminations, boots, springs
• 100% inspected and factory tested
• Coil are potted to seal the entrie solenoid for long, reliable service under extreme vibration, temperature, dirt, and moisture conditions
Specification:
• Rated Voltage: 12 VDC; 24 VDC
• Pull Current: 46 A; 25 A
• Hold Current: 1.1 A; .5 A
• Pull rating: 20 lbs. (89 Newtons) at 1 in. (25.4 mm) at rated voltage and 68°F (20°C)
• Hold Rating: 40 lbs. (178 Newtons) at rated voltage and 68°F (20°C)
• Ambient Temperature: -40˚F to +250˚F (-40˚C to +121˚C)
• Shipping Weight: Approximately 1.5 lbs. (0.7kg)
Product:
1.Woodward - Model: 1756ES - 12SUC17B2S5
• Part N.: SA-4866-12
• Volt: 12 VDC
2.Woodward - Model: 1756ES - 12E2ULB1S1
• Part N.: 1700-3501
• Volt: 12 VDC
