VDO : TEMP SWITCH (สวิตซ์ควบคุมอุณหภูมิ/สวิตซ์ตัดอุณหภูมิ)

Standard Specification:
● Temperature switchpoint: 100 °C ± 3 °C  ; 105 °C ± 3 °C ; 150 °C ± 5 °C ;
● Maximum operating temperature: 150 °C ; 160 °C ; 200 °C
● Thread: M14 x 1.5
● Switch element length + thread (L): 29 mm
● Sensor diameter: 10 mm
● Operating voltage: 6 - 24 V DC
● Switch function: Contact closes when temperature > 100 °C
● Temperature switch signal: Single-Pole common ground
● Contact response: Slow
● Temperature switch capacity: Maximum 1.2 - 3 Watt non-inductive
● Temperatureswitch connector: AMP Male 6.3 x 0.8 mm ;

Product:

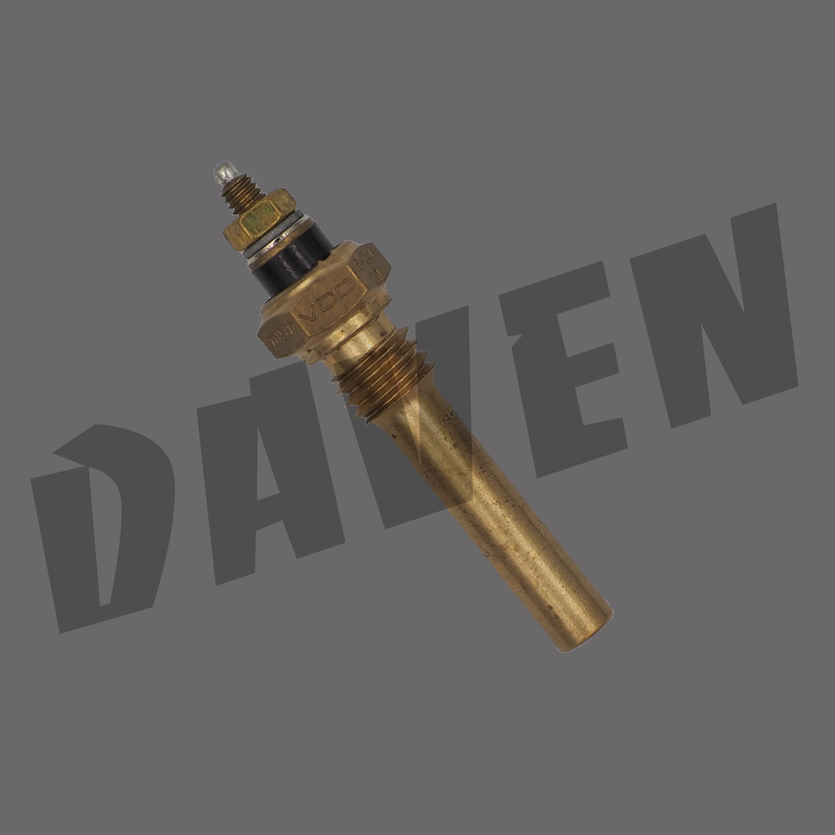

1.VDO Temperature switch
● Temperature switchpoint: 95 °C ± 3 °C ; 130 °C ± 3 °C ; 150 °C ± 5 °C
● Thread: M14 x 1.5
● Contact close as temperature rises
● Temperature switch: 1-pole common ground
● Switching capacity: 1.2 - 3 Watt Maximum
