PRESSURE SWITCH

NAME: NASON - SM LOW PRESSURE SWITCH

              - สวิทซ์ควบคุมแรงดันต่ำถึงสูง มีจุดเซตที่ 2 PSI ถึง 7500 PSI

      - รูปแบบ snap-action ที่มีคุณภาพสูง

Features:

• Long-life elastomer diaphragm

• High-quality snap-action switch

• Factory preset

• Available in a wide range of configurations

• Economical

• Pneumatic and hydraulic applications

• NEMA 4, 13

Operating Specifications:

• Set Point Range: 2 — 120 PSI (.14 — 8.3 Bar)

• Set Point Tolerance: ±1 PSI or 5% (.07 Bar)

• Maximum Operating Pressure: 250 PSI (17 Bar)

• Proof Pressure: 750 PSI (51 Bar)

• Differential: 8 — 16%

• Current Rating: 5 A @ 250 VAC 5 A @ 30 VDC (Resistive)

• Media Connection Standard: Brass (Optional: Aluminum, Nickel Plating, Delrin, Zinc Plated • • Steel, 303 SS, 316 SS)

• Circuit Form SPST-NO, SPST-NC or SPDT

• Diaphragm Material: Buna N

• Cycle Life: 1 Million

• Operating Temperature: -20°F - +220°F

• Unit Weight: .13 lbs

Product:

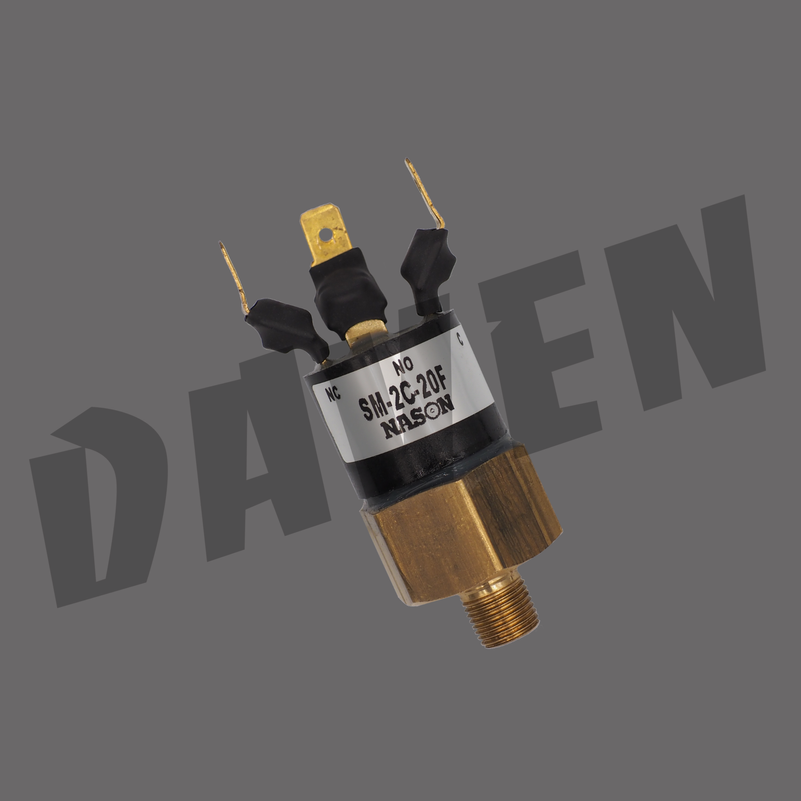

1.Nason Low Pressure Switch SM

• Media Connection:1/2" NPT Male : 1/8" NPT Female

• Circuit Form: C SPDT

• Fixed Set Point: 2 — 120 PSI

• Set Point Direction: F Falling

• Electrical Options: HR DIN43650A Connector

----------------------------

DAVEN CODE: 340019/20
