GUAGES

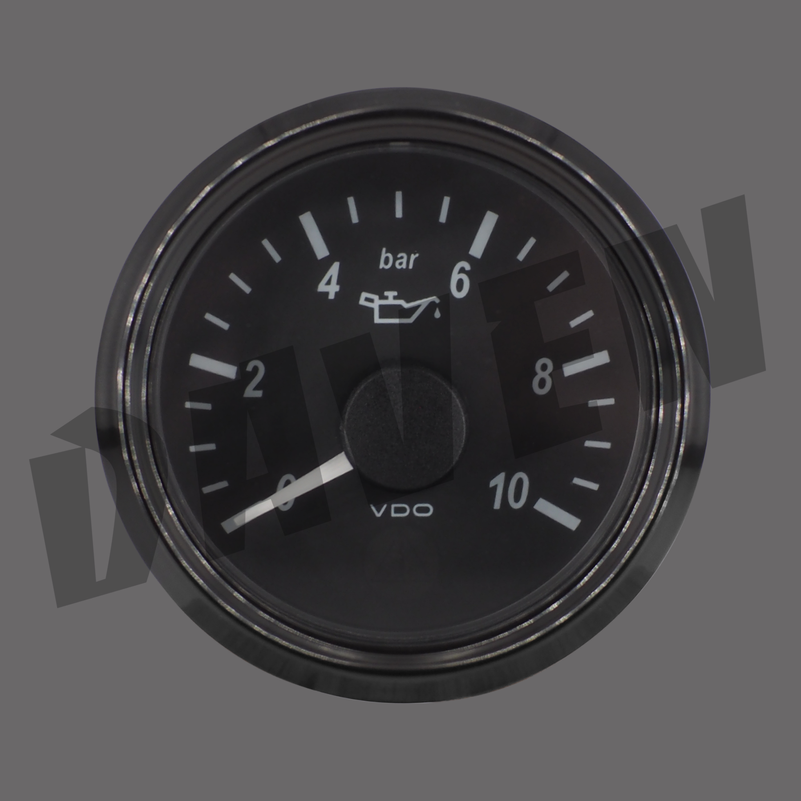

NAME: VDO - ENGINE OIL PRESSURE (SINGLEVIU)

Standard Specification:
● Pressure Measurement Range:0 - 10 Bar
● Warning Light: Red LED Via Plus And Min
● Operating Voltage:8 - 32 Volt DC
● Packaging: SingleViu Single Piece Retail
● Application: VDO Engine Monitoring
● Signal Digital: CANBus J1939: 65263-100-0x22
● Signal Analogue: 10 - 184 Ohm
● Serie: VDO SingleViu CANBus-Analog
● Dial Illumination: Multi-Colour Programmable
● Dial Scale: Single
● Lens: Mineral Glass - Anti-Fog
● Country Of Origin: China
● Color: Black
● IP Class Front: IP67 (IEC 60529)
● Installation Dimension:52 Mm - 2 1/16 Inch
● Functionality: Engine Oil Pressure
● Bezel Interchangeable: Yes - Special Tool Required
● Bezel Model: Black Triangle
● Connector Type: Molex 8-Pin CANBus
● Communication: CANBus J1939 Or Analogue

Product:
1.VDO - Engine Oil Pressure
● Black - Hole: 52 mm - 2 1/16"
● Operating voltage: 8-32 Volt DC
● Range: 0 - 10 Bar - ISO 0248
● Analogue signal: 10 - 184 Ohm
● CANBus input: 65263 - 100 - 0x22
● Connection cable included
● White Lighted w/ Red Pointer

----------------

DAVEN CODE: 120100
