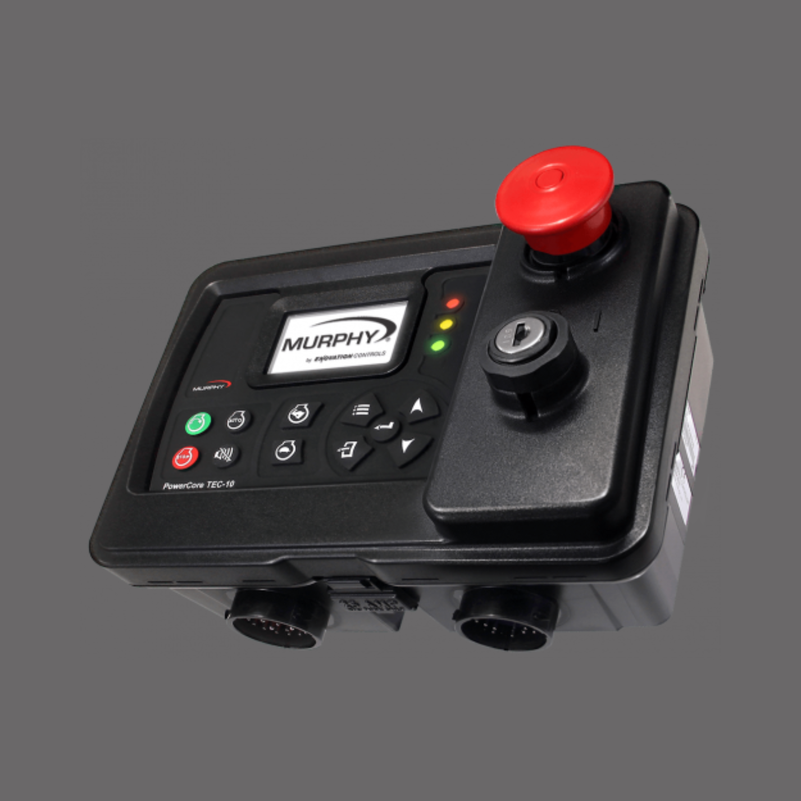

NAME: POWERCORE® TEC-10: TURNKEY ELECTRONIC CONTROLLER

Description:

Murphy's PowerCore® TEC-10 panel provides full control with easy setup and installation.

A superior turnkey electronic controller, the PowerCore® TEC-10 panel provides full control of your engine including auto start/stop, auto throttling and display of engine parameters along with critical faults from the engine/application. The TEC-10 supports SAE J1939 CAN protocols for electronically governed engines as well as analog sensors on mechanical engines for fault and safety warnings/shutdowns.

Specification:

• Interface

Display :

- Monochrome HR-TFT

- 2.7 in./ 68 mm, WQVGA (400 x 240 pixels)

- Languages: English, Spanish, German, French, Italian

(3) LEDs : green (mode), yellow (warning) and red (shutdown)

Operator controls :

- (11) Raised silicone keypads, tactile feedback

- (1) Rotary switch, power on/off

- (1) Push-switch (red), engine stop

• Power Supply:

Operating Voltage : 8-32 VDC, reverse battery polarity and load dump protected

Cranking Power Holdup : 0 VDC up to 50 mS(also good for brownout/blackout instances)

Current consumption : Power on in stopped state; 117 mA at 12 VDC. Power on in standby mode; 52 mA at 12 VDC.

• Inputs (9):

(5) Digital, configurable (active on High, Low, Open)

(3) Analog, configurable (4-20 mA, 0-5V, resistive or digital ground)

(1) Frequency, supporting: Magnetic pickup (30 Hz - 10 kHz, 2.0 VAC-120 VAC) and Engine Alternator (30 Hz - 10 kHz, 4.5 VRMS - 90 VRMS)

• Outputs (8):

(2) Relay, switched + DC, 10A

(1) Relay, Form C (dry / volt-free), 10A

(2) Low-side FET (– DC), 1A

(2) High-side FET (+DC), 1A

(1) Dedicated Alternator Excitation, + DC, 1A

• Communications:

(1) CAN: J1939

(1) RS485: Modbus RTU

• Mating Connectors:

21 Position, Deutsch HDP26-24-21SE,

31 Position, Deutsch HDP26-24-31SE

• Physical/Environmental:

Enclosure material : Polycarbonate

Dimensions (WxHxD) : 9.59 x 7.34 x 5.20 in. (243.48 x 186.5 x 132.23mm)

Weight : 4 lbs (1.8 kg)

IP rating : IP67

Operating Temperature : -40° to + 85° C (-40° to 185° F)

Storage Temperature : -40 to + 85° C (-40° to 185° F)

Vibration : 7.86 Grms (5-2000 Hz), 3-axis random

Shock : ± 50G, 3-axis

Product:

1.Turnkey Electronic Controller

Part N.: 40.70.0495 TEC-10

DAVEN CODE: 380017
